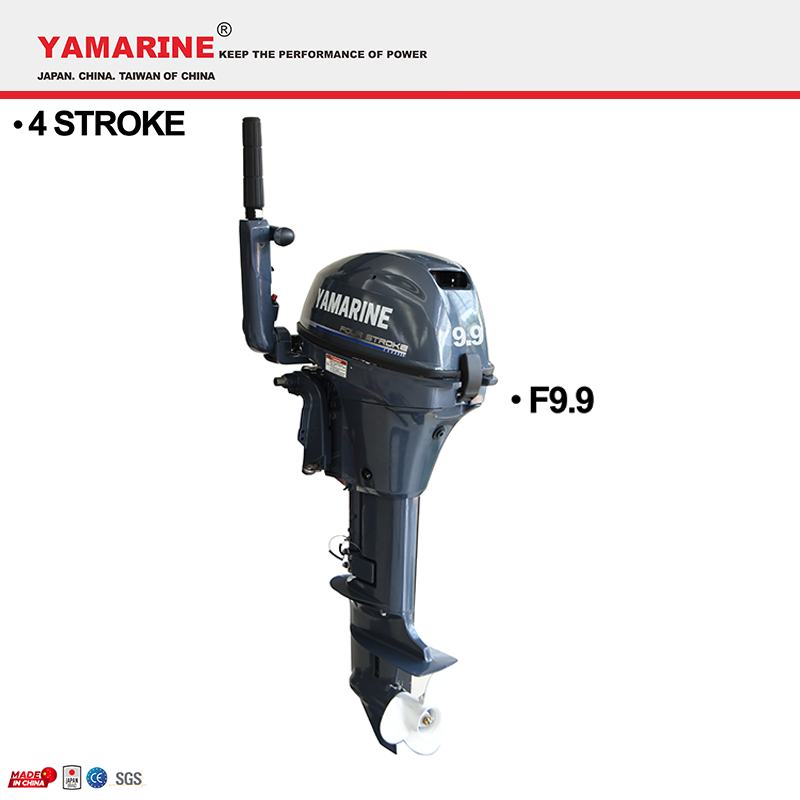

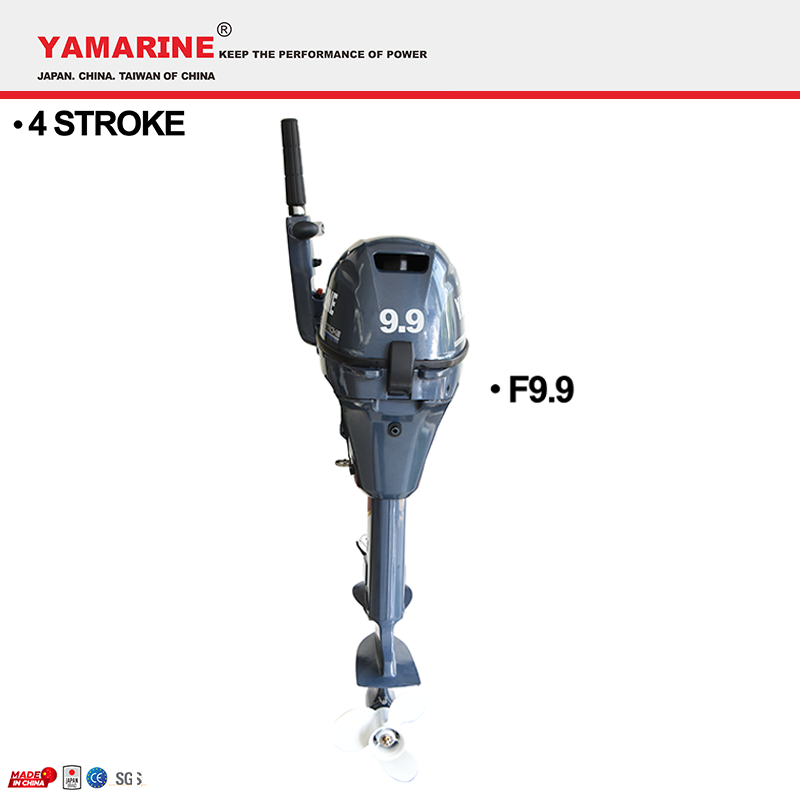

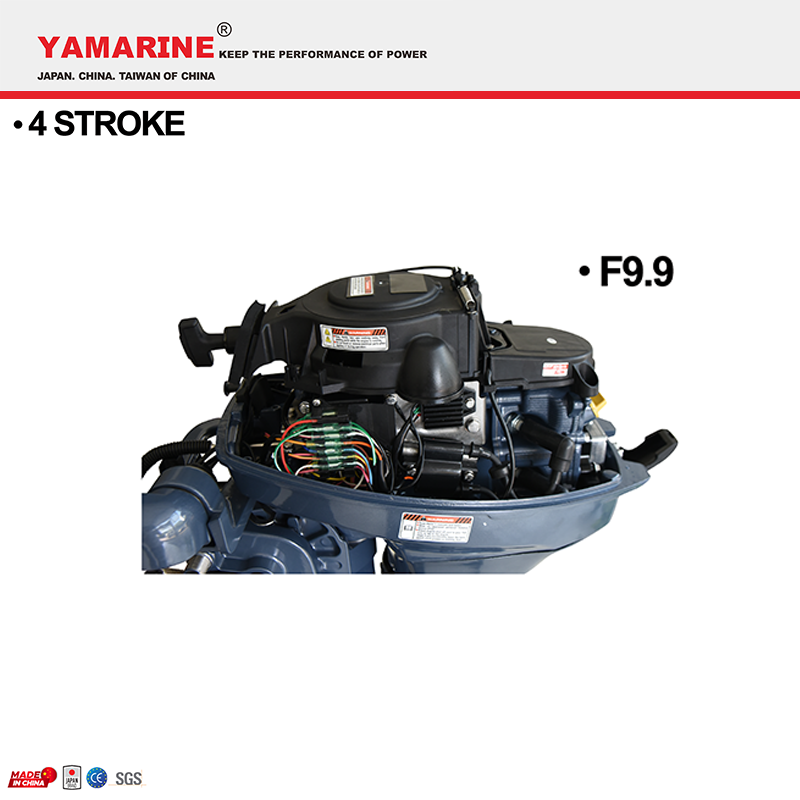

JAPAN YAMARINE 4 STROKE 9.9HP outboard motor replace YAMAHA F9.9 outboard engine
YAMARINE
F9.9
JAPAN YAMARINE 4 STROKE 9.9HP outboard motor replace YAMAHA F9.9 outboard engine
| Weight | 42kg(93 lbs) | Ignition | CDI |
| Full Throttle RPM Range | 5000 ~ 6000 rpm | Spark Plug | BR6HS-10 |
| Fuel Induction System | SOHC | Starting System | Electric & Manual |
| Recommended Engine Oil | Yamalube 4M FC-W 10W30 or 20W40 | Lubrication | Wet Sump |
| Engine Type | 2 cyl | Engine Oil Capacity | 0.8L |
| Displacement | 212 cc | Recommended Cooling | Thermostatic Control |
| Bore x Stroke | 56 × 43 mm (2.48"×2.29") | Ethanol Blend Limit | 10% Maximum |
| Prop Shaft Horsepower | 9.9 hp @ 5500 rpm | Gear Ratio | 2.08:1 |
| Alternator Output at W.O.T. | 12V/6A | Gear Shift | Forward, Neutral, Reverse |
| Compression Ratio | 9.4:1 | Shaft Length | 15" - 20" |
| Recommended Fuel | Octane 87 | Degree of Tilt | 71° |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) | Degree of Trim | -4° through +16° |
| C.A.R.B. Rating | 3-Star | Mounting Centers | N/A |
| Exhaust | Through Propeller | Steering Angle (maximum) | 43° from center, either direction |
| Intake | 4 |
