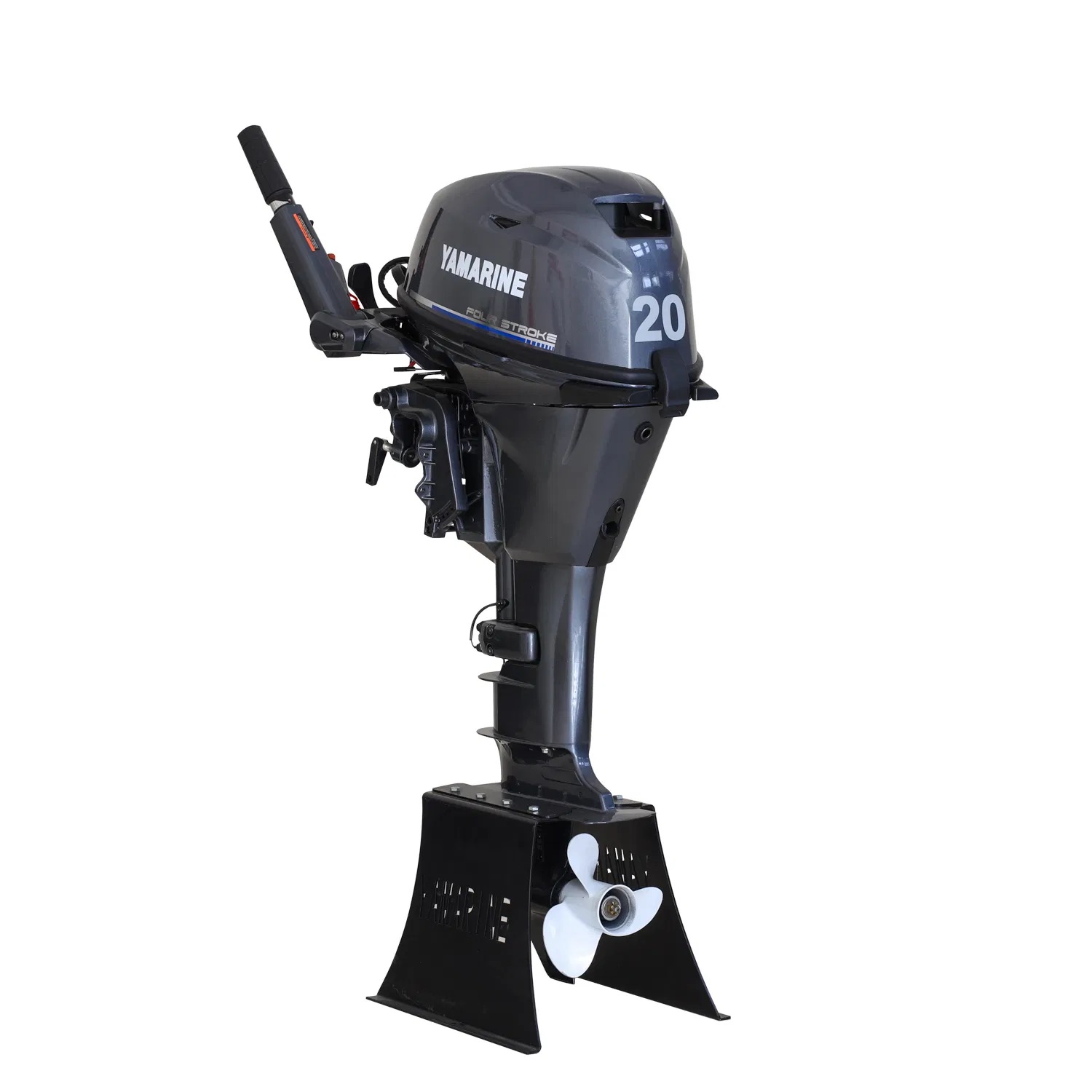

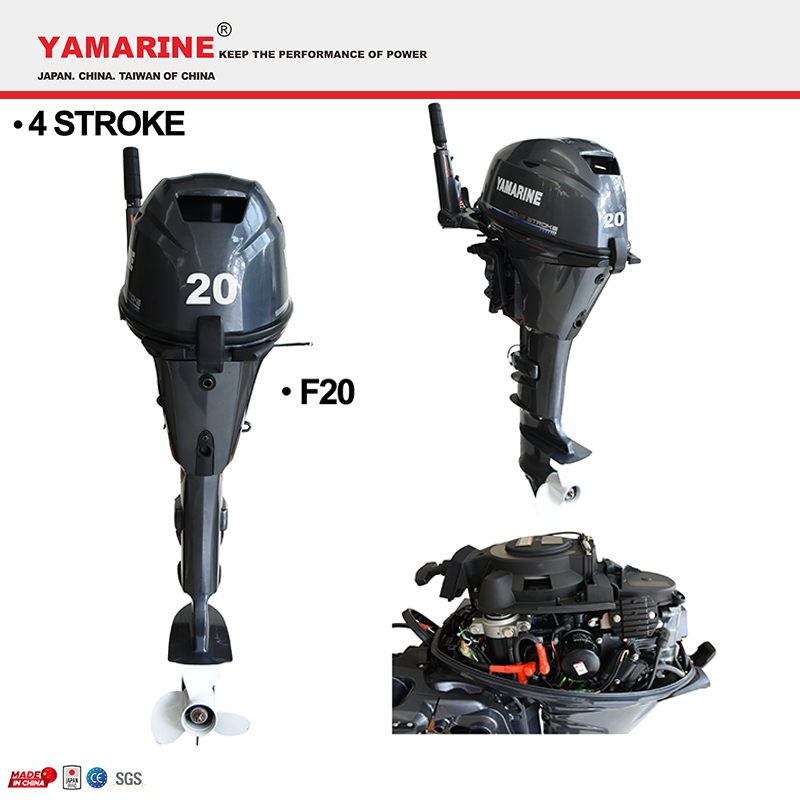

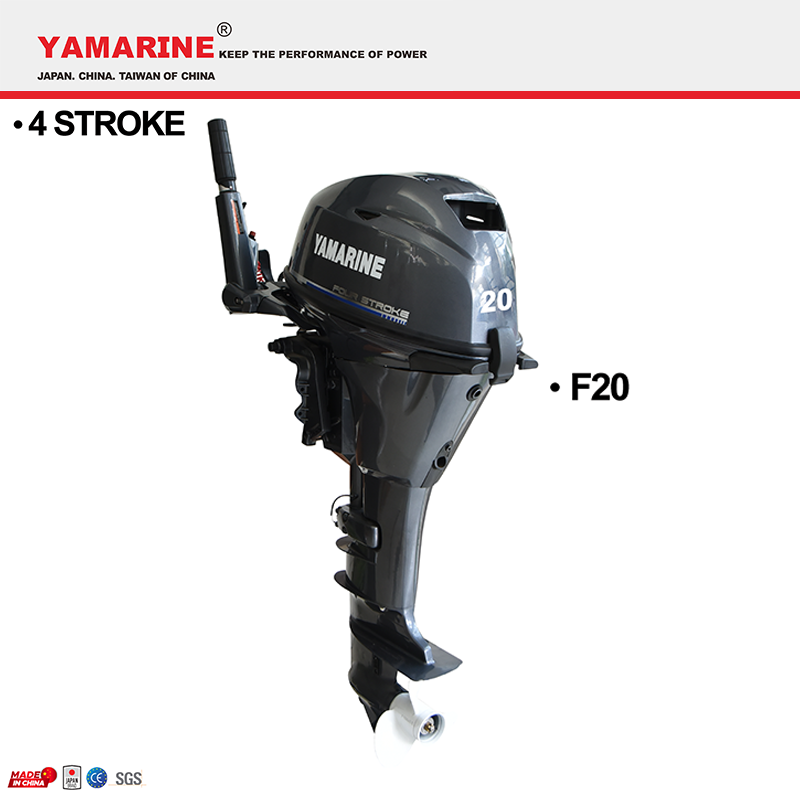

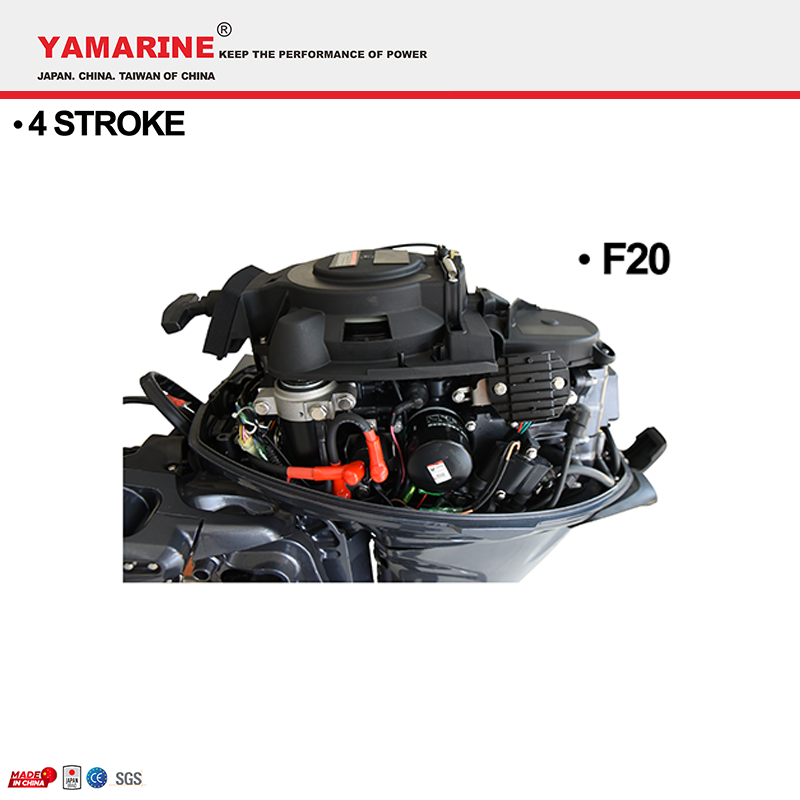

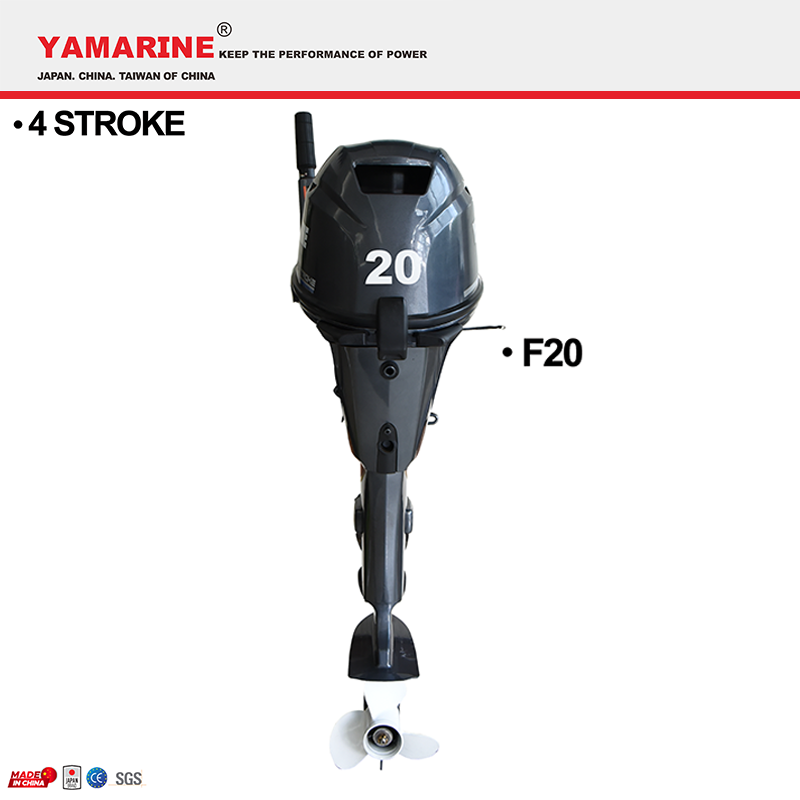

JAPAN YAMARINE 4 STROKE 20HP outboard motor replace YAMAHA F20 outboard engine
YAMARINE
F20
JAPAN YAMARINE 4 STROKE 20HP outboard motor replace YAMAHA F20 outboard engine
| Weight | 57 kg (126 lbs) - 66 kg (146 lbs) | Ignition | CDI |
| Full Throttle RPM Range | 5000 ~ 6000 rpm | Spark Plug | DPR6EB-9 |
| Fuel Induction System | EFI | Starting System | Electric & Manual |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) | Lubrication | Wet Sump |
| Engine Type | 2 cyl | Engine Oil Capacity | 1.1L/1.0L |
| Displacement | 362 cc | Recommended Cooling | Thermostatic Control |
| Bore x Stroke | 65 x 65.1mm (2.554 x 2.558 in) | Ethanol Blend Limit | 10% Maximum |
| Prop Shaft Horsepower | 20 hp @ 5500 rpm | Gear Ratio | 2.00:1 |
| Alternator Output at W.O.T. | 16 Amp | Gear Shift | Forward, Neutral, Reverse |
| Compression Ratio | 9.3:1 | Shaft Length | 15" - 20" |
| Recommended Fuel | Octane 87 | Degree of Tilt | 62°- 63° |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel/Water Separating Filter (external) | Degree of Trim | -3° through +16° |
| C.A.R.B. Rating | 2-Star | Mounting Centers | N/A |
| Exhaust | Through Propeller | Steering Angle (maximum) | 45° from center, either direction |
| Intake | 4 |
