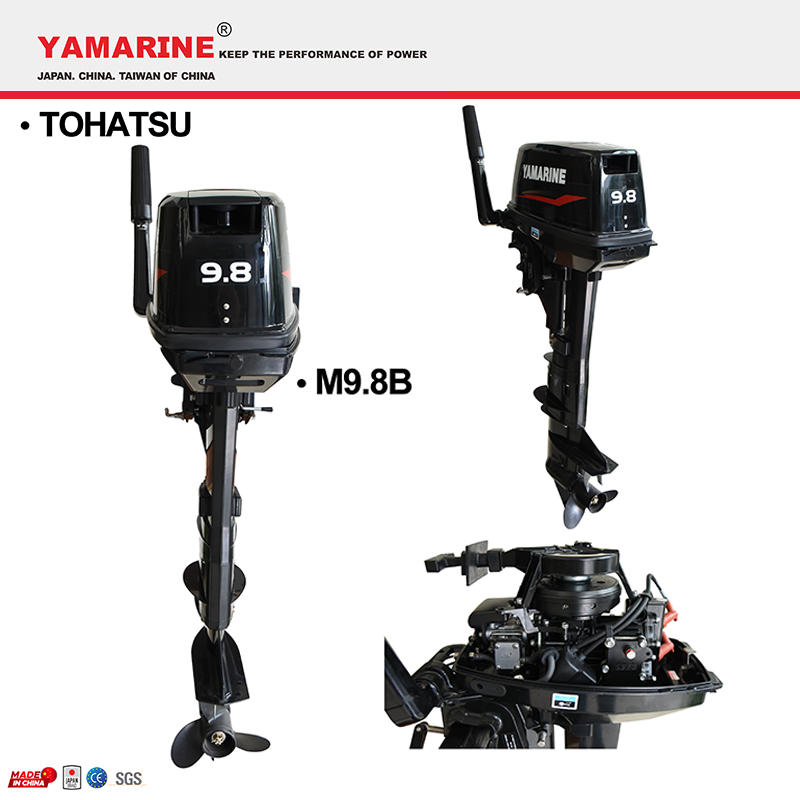

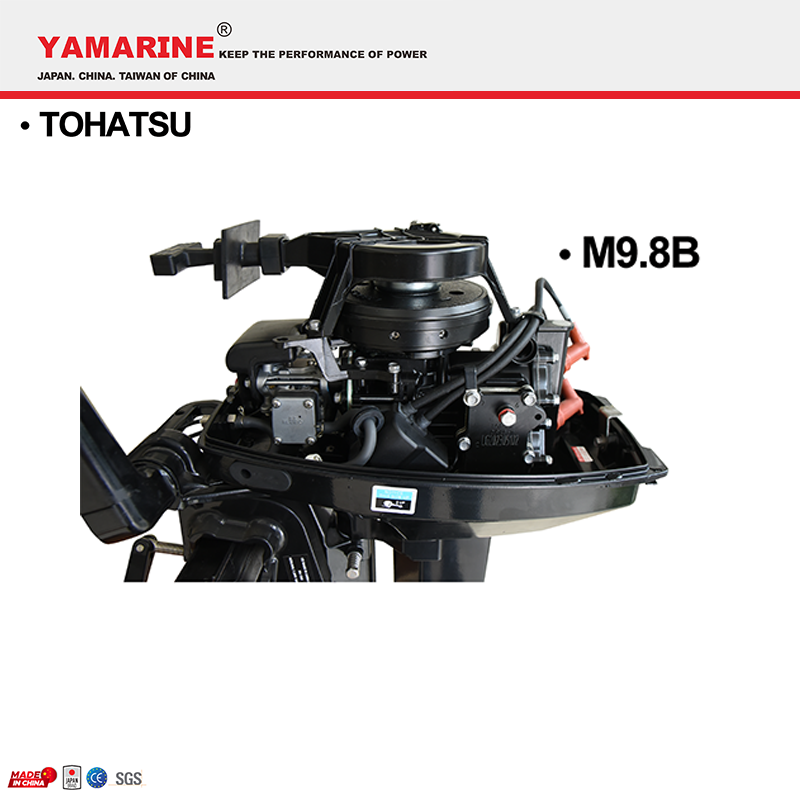

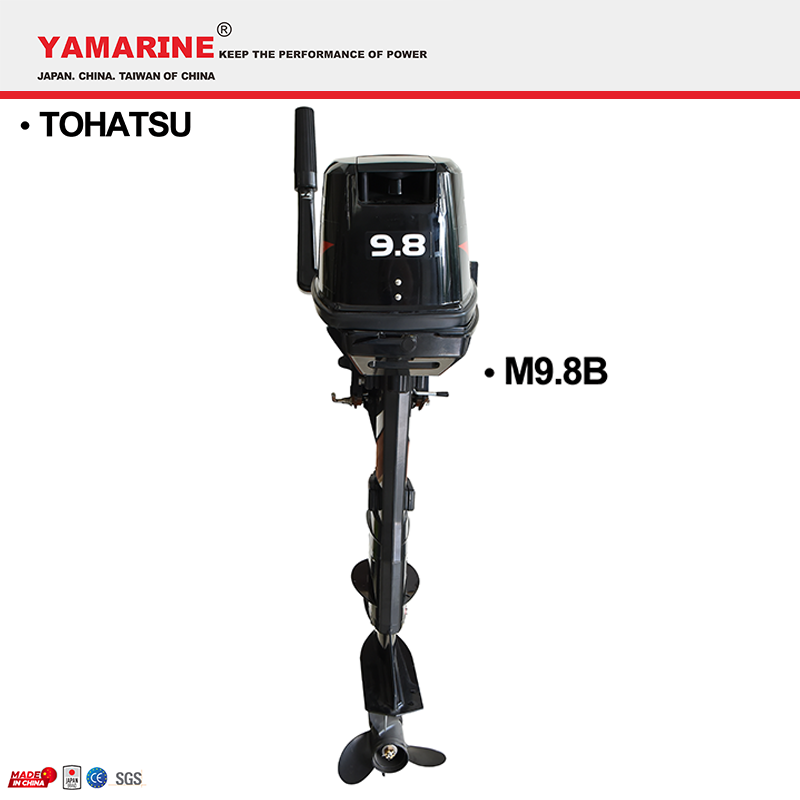

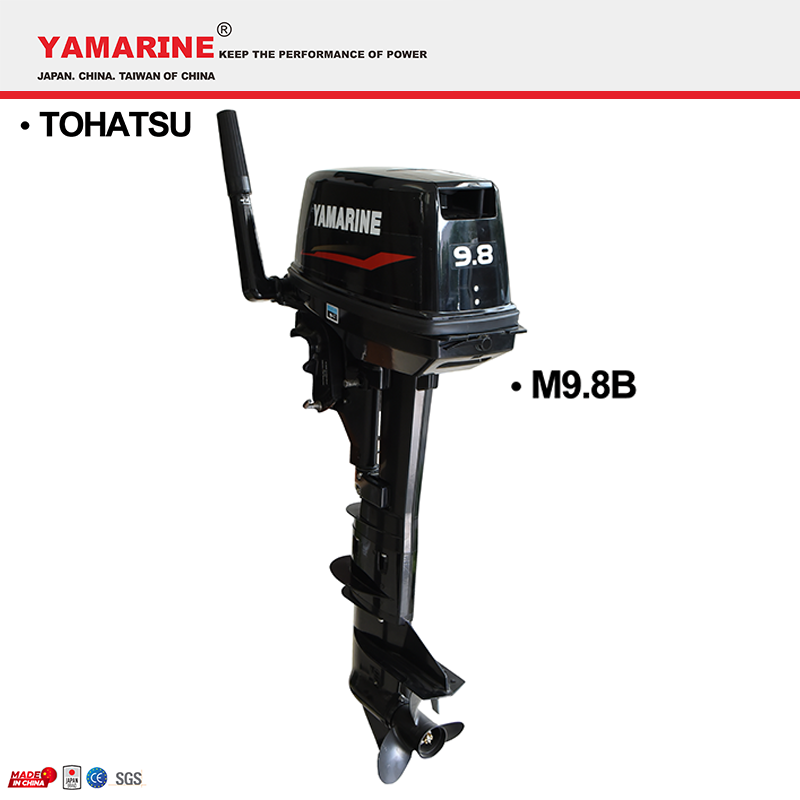

JAPAN YAMARINE 9.8HP outboard motor replace TOHATSU M9.8B outboard engine
YAMARINE
M9.8B
JAPAN YAMARINE 9.8HP outboard motor replace TOHATSU M9.8B outboard engine
| Engine | Two Stroke 2 Cylinder |
| Output | 9.8 ps (7.2 kw) |
| Displacement | 169 cc (10.31 cu.in.) |
| Bore x Stroke | 50 x 43 mm (1.97 x 1.69 in) |
| Max. RPM Range | 5,000 - 6,000 |
| Starting | Electric or Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 2.08:1 (13:27) |
| Ignition System | ATDC1゜- BTDC17゜ |
| Propeller Selection Range | 5" - 9.5" |
| Transom Height | 15", 20", 25" |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | Genuine recommended 2stroke engine oil (TCW-3) |
| Fuel Tank | 12 L (3.17 US Gal.) Separate Fuel Tank |
| Weight* | 26.0 Kg (57 lbs.) |
| Alternator Output | Optional: 12V, 80W, 7A (Standard on Electric Start Models) |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Shallow Water Drive | Standard |
| Engine lubrication system | Premixed Fuel |
